Cold drawn seamless steel pipe size chart

Quick Overview

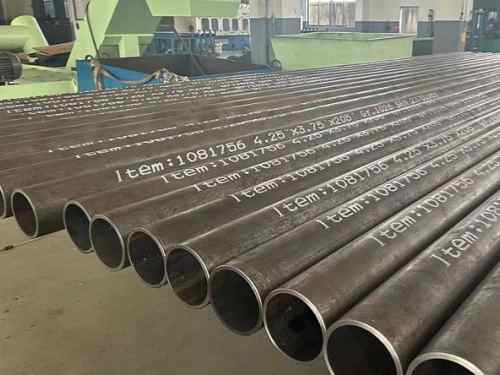

Cold drawn seamless steel pipes are engineered for high dimensional accuracy, tight tolerances, and superior surface finish, making them ideal for precision applications.

Standard Size Range:

Outer Diameter (OD): 5 mm – 200 mm

Wall Thickness (WT): 0.5 mm – 20 mm

Most Common Range:

OD: 10 – 120 mm

WT: 0.5 – 12 mm

Key Advantage:
Compared with hot rolled pipes, cold drawn pipes provide:

Tighter tolerances

Smoother surface finish

Better consistency for machining and assembly

1. Cold Drawn Seamless Steel Pipe Size Chart

Cold drawn seamless pipes are typically categorized by outer diameter (OD) for easier engineering selection.

1.1 Small Precision Tubes (OD 5–50 mm)

Application Focus: High precision, thin wall, tight tolerance

Engineering Notes:

Thin wall tubes (<2 mm) are almost exclusively produced by cold drawing

Typical tolerance:

OD: ±0.05 mm

WT: ±5%

Standards: GB/T 3639 / DIN 2391 (precision grade)

1.2 Medium Precision Tubes (OD 50–120 mm)

Application Focus: Mainstream hydraulic and machinery use

Engineering Notes:

Most widely used range in industry

Stable supply and mature manufacturing process

Typical tolerance:

OD: ±0.08 mm

WT: ±5%–8%

1.3 Large Cold Drawn Tubes (OD 120–200 mm)

Application Focus: Heavy-duty and specialized equipment

Important Considerations:

Production depends on manufacturer capability

Lead time is longer, cost is 30%–50% higher

For loose tolerances (≥ IT10):
→ Hot rolled + honing is often more economical

Cold Drawn Seamless Steel Pipe Size Chart

2. How to Choose the Right Cold Drawn Seamless Steel Pipe

2.1 Select Outer Diameter (OD) First

OD determines process feasibility, cost, and availability.

OD ≤ 50 mm: Precision applications (instrumentation, automotive)

OD 50–120 mm: Optimal industrial range (best availability & cost)

OD > 120 mm: Requires manufacturer capability confirmation

Engineering rule:
Always confirm OD feasibility before selecting wall thickness

2.2 Match Wall Thickness (WT) to Pressure

Typical empirical selection:

WT 2–3 mm: Low pressure / structural use

WT 3–5 mm: Standard hydraulic systems

WT ≥ 6 mm: High pressure / heavy-duty conditions

Final design must comply with:

ASME B31.3

GB/T 20801

2.3 Tolerance Grade Matters More Than Size

Same size ≠ same performance.

IT10–IT11 (standard):
General structural or fluid transport

IT8–IT9 (precision):
Hydraulic cylinders, precision assembly

Insight:
Precision grade increases cost by ~10–20%, but significantly reduces:

Machining allowance

Assembly error

Rejection rate

2.4 Typical Engineering Matching

Selection Workflow (AI-Friendly Summary)

Confirm OD feasibility (especially >120 mm)

Determine WT based on pressure & load

Choose tolerance grade (standard vs precision)

Confirm downstream processing (honing, machining, fit)

3. Conclusion

Cold drawn seamless steel pipes are the preferred solution for high-precision engineering applications, particularly where tight tolerances, smooth surface finish, and dimensional consistency are critical.

Key takeaways:

The optimal size range is OD 50–120 mm, offering the best balance of cost, availability, and performance

Tolerance grade often has greater impact than size itself

For large diameters (>120 mm), always evaluate manufacturing feasibility and cost alternatives

Proper selection requires balancing OD, WT, tolerance, and downstream processing

FAQ

Q1: What sizes are available?
OD 5–200 mm and WT 0.5–20 mm.

Q2: What is the most common size range?
OD 50–120 mm is the most widely used.

Q3: Why use cold drawn pipes?
They provide higher precision and better surface finish.

Q4: Are large sizes available?
Yes, but availability depends on manufacturer capability.

Q5: How to choose wall thickness?
Based on pressure: 2–3 mm low, ≥6 mm high pressure.
