Seamles Line Pipe

Product:Line Pipe, API Line Pipe, Seamless Line Pipe, Carbon Steel Line Pipe

Specification:

Outer Diameter(OD): 73-630mm

Wall Thickness(WT): 6-35mm

LENGTH: 5.8/6/11.8/12m

Standard & Grade: API 5L:Gr.A,Gr.B, X42,X46,X52,X56,X60,X65 PSL1 and PSL2 L210,L245,L290,L320,L360,L390,L415,L450,L485

End: Square Ends/Plain Ends (straight cut, saw cut, torch cut),Beveled/Threaded Ends

Surface:Black Painting/Oil Painting/Anti-Rust oil/Anti-Corrosive Coating

Packing: Bundled,Plastic Caps Plugged,Waterproof Paper/Bag Wrapped

Application:For Transportation in petroleum and natural gas industries

Send Email Inquiry
Introduction Specification Production process Packaging Inquiry

Introduction

Product:Line Pipe, API Line Pipe, Seamless Line Pipe, Carbon Steel Line Pipe

Specification:

Outer Diameter(OD): 73-630mm

Wall Thickness(WT): 6-35mm

LENGTH: 5.8/6/11.8/12m

Pipe Standard:
API 5L  PSL1/PSL2    Gr.A,Gr.B,X42,X46,X52,X56,X60,X65,X70
API 5L  PSL1/PSL2   L210,L245,L290,L320,L360,L390,L415,L450,L485

End: Square Ends/Plain Ends (straight cut, saw cut, torch cut),Beveled/Threaded Ends

LINE PIPE COATINGS
- Fusion Bonded Epoxy (FBE) Coating
- Three Layers Polyethylene (3PE) Coating
- Three Layers Polypropylene (3PP) Coating
- Epoxy Coal Pitch Anticorrosion Coating
- Silicone Anticorrosion Coating
- Internal Coating

Surface:Black Painting/Oil Painting/Anti-Rust oil/Anti-Corrosive Coating

Packing: Bundled,Plastic Caps Plugged,Waterproof Paper/Bag Wrapped

Application:For Transportation in petroleum and natural gas industries

Line pipe is a tube made of high strength carbon steel. It is typically manufactured according to the API 5L metallurgical specification developed by the American Petroleum Institute (API). The raw material can be either seamless or welded carbon steel or stainless steel piping. This product can be used to build pipelines that transport a variety of resources including natural gas, oil, petroleum, and water. API 5L line pipe is available in various diameters ranging from two inches to 48 inches. Its size and diameter required for a pipeline vary according to the amount of gas or liquid that it intended to carry and the pressures it must withstand.

Seamless Line Pipe

Steel Grade: B, X42, X52, X60, X65, X70

Dimension: 1"/2" - 24"

Process:hot rolling, hot expanding

Welding Line Pipe

Steel Grade: B, X42, X52, X60, X65, X70, X80

Dimension: 2" - 30"

Process: ERW, SSAW, LSAW, HFW, JCOE.

Standard: API 5L / ISO 3183 Hot Rolled

Type: Seamless / ERW / Welded / Fabricated / CDW

Outer Diameter Size: 3/8" NB To 30" NB (Nominal Bore Size)

Wall Thickness: Schedule 20 To Schedule XXS (Heavier On Request) Up to 250 mm Thickness

Length: 5 To 7 Meters, 09 To 13 Meters, Single Random Length, Double Random Length And Customize Size.

Pipe Ends: Plain Ends / Beveled Ends / Coupling

Surface Coating: Epoxy Coating / Colour Paint Coating / 3LPE Coating.

Grades: API 5l Grade B X42, API 5l Grade B X46, API 5l Grade B X52, API 5l Grade B X56, API 5l Grade B X60, API 5l Grade B X65, API 5l Grade B X70

Line pipes can be categorized in different types. The following pipelines are classified according to the type of fluids and items transported.



Specification

DIMENSIONS AND SIZES OF LINE PIPE

NPS

O. D.

Nominal Wall Thickness

DN

Inch

mm

SCH

5S

SCH

10S

SCH

10

SCH

20

SCH

30

SCH

40

SCH

60

SCH

80

SCH

100

SCH

120

SCH

140

SCH

160

STD

XS

XXS

50

2″

60.3

1.65

2.77

–

–

–

3.91

–

5.54

–

–

–

8.74

3.91

5.54

11.07

65

2-1/2″

73

2.11

3.05

–

–

–

5.16

–

7.01

–

–

–

9.53

5.16

7.01

14.02

80

3″

88.9

2.11

3.05

–

–

–

5.49

–

7.62

–

–

–

11.13

5.49

7.52

15.24

90

3-1/2″

101.6

2.11

3.05

–

–

–

5.74

–

8.08

–

–

–

–

5.74

8.08

–

100

4″

114.3

2.11

3.05

–

–

–

6.02

–

8.58

–

11.13

–

13.49

6.02

8.56

17.12

125

5″

141.3

2.77

3.4

–

–

–

6.55

–

9.53

–

12.7

–

15.88

6.55

9.53

18.05

150

6″

168.3

2.77

3.4

–

–

–

7.11

–

10.97

–

14.27

–

18.26

7.11

10.97

21.95

200

8″

219.1

2.77

3.76

–

6.35

7.04

8.18

10.31

12.7

15.09

18.26

20.62

23.01

8.18

12.7

22.23

250

10″

273.1

3.4

4.19

–

6.35

7.8

9.27

12.7

15.09

18.26

21.44

25.4

28.58

9.27

12.7

25.4

300

12″

323.9

3.96

4.57

–

6.35

8.38

10.31

14.27

17.48

21.44

25.4

28.58

33.32

9.53

12.7

25.4

350

14″

355.5

3.96

4.78

6.35

7.92

9.53

11.13

15.09

19.05

23.83

27.79

31.75

35.71

9.53

12.7

–

400

16″

406.4

4.19

4.78

6.35

7.92

9.53

12.7

16.66

21.44

26.19

30.96

36.53

40.49

9.53

12.7

–

450

18″

457.2

4.19

4.78

6.35

7.92

11.13

14.27

19.05

23.83

39.36

34.93

39.67

45.24

–

–

–

500

20″

508

4.78

5.54

6.35

9.53

12.7

15.09

20.62

26.19

32.54

38.1

44.45

50.01

–

–

–

550

22″

558.8

4.78

5.54

6.35

9.53

12.7

–

22.23

28.58

34.93

41.28

47.63

53.98

–

–

–

600

24″

609.6

5.54

6.35

6.35

9.53

14.27

17.48

24.61

30.96

38.89

46.02

52.37

59.54

–

–

–

If the sizes you are looking for are not in the chart above, please feel free to let us know. We will make efforts to meet your needs.

CHEMICAL COMPOSITION OF LINE PIPE

API 5L PSL-1 Chemical Component

Steel Grade

Mass fraction, based on melting and product analysis %

C

Mn

P

S

V

Nb

Ti

max.

max.

min.

max.

max.

max.

max.

max.

L175 or A25

0.21

0.60

–

0.030

0.030

–

–

–

L175P or A25P

0.21

0.60

0.045

0.080

0.030

–

–

–

L210 or GR. A

0.22

0.90

–

0.030

0.030

–

–

–

L245 or GR. B

0.26

1.20

–

0.030

0.030

–

–

–

L290 or X42

0.26

1.30

–

0.030

0.030

–

–

–

L320 or X46

0.26

1.40

–

0.030

0.030

–

–

–

L360 or X52

0.26

1.40

–

0.030

0.030

–

–

–

L390 or X56

0.26

1.40

–

0.030

0.030

–

–

–

L415 or X60

0.26

1.40

–

0.030

0.030

–

–

–

L450 or X65

0.26

1.45

–

0.030

0.030

–

–

–

L485 or X70

0.26

1.65

–

0.030

0.030

–

–

–

- API 5L PSL-2 Chemical Component

Steel Grade

Mass fraction, based on melting and product analysis %

CEC(%) max

C

Si

Mn

P

S

V

Nb

Ti

Other

CEIIW

CEPcm

L245M or BM

0.22

0.45

1.20

0.025

0.015

0.05

0.05

0.04

–

0.43

0.25

L290M or X42M

0.22

0.45

1.30

0.025

0.015

0.05

0.05

0.04

–

0.43

0.25

L320M or X46M

0.22

0.45

1.30

0.025

0.015

0.05

0.05

0.04

–

0.43

0.25

L360M or X52M

0.22

0.45

1.40

0.025

0.015

–

–

–

–

0.43

0.25

L390M or X56M

0.22

0.45

1.40

0.025

0.015

–

–

–

–

0.43

0.25

L415M or X60M

0.12

0.45

1.60

0.025

0.015

–

–

–

–

0.43

0.25

L450M or X65M

0.12

0.45

1.60

0.025

0.015

–

–

–

–

0.43

0.25

L485M or X70M

0.12

0.45

1.70

0.025

0.015

–

–

–

–

0.43

0.25

L555M or X80M

0.12

0.45

1.85

0.025

0.015

–

–

–

–

0.43

0.25

L625M or X90M

0.10

0.55

2.10

0.020

0.010

–

–

–

–

–

0.25

L690M or X100M

0.10

0.55

2.10

0.020

0.010

–

–

–

–

–

0.25

L830M or X120M

0.10

0.55

2.10

0.020

0.010

–

–

–

–

–

0.25



Production process

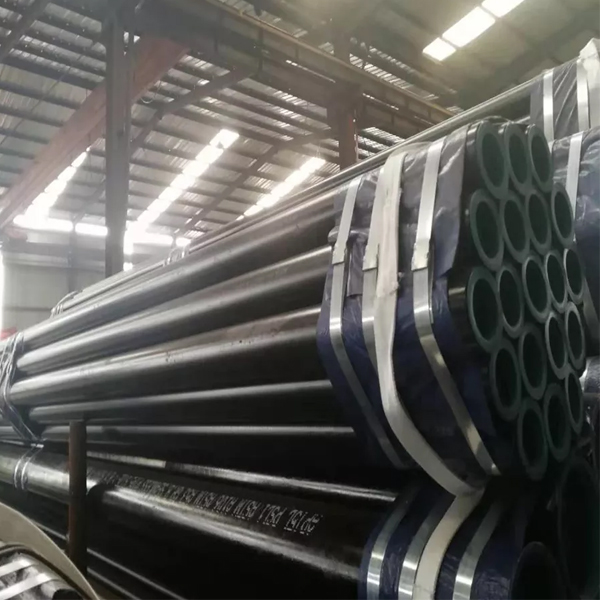

Packaging



If you have any inquiries and questions, please contact CONTINENTAL STEEL CO.,LTD. at any time. Thanks in advance. Welcome!
