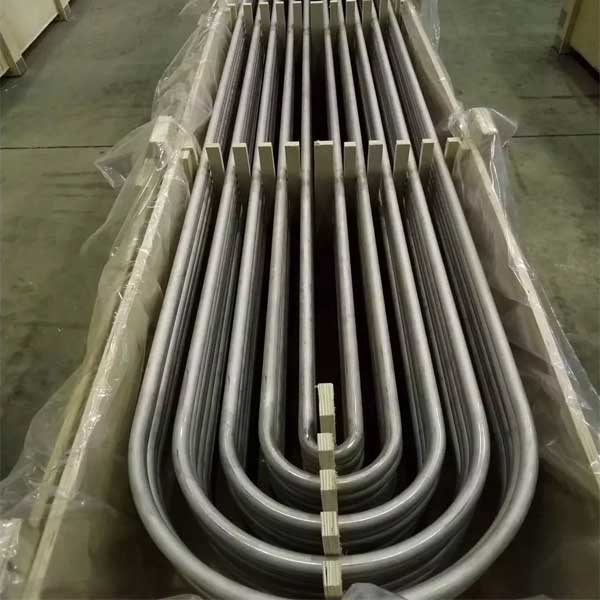

Heat Exchanger Tube

Pipe Type:Carbon Steel Heat Exchanger Tube,Heat Exchanger Alloy Steel Tube ,Stainless Steel Heat Exchanger Seamless Tube

Outside Diameter:6.00 mm to 101.40 mm

Wall Thickness:0.89 mm to 6.00 mm

Length:Up to 30mtr long

Grades:TP-304, 304L, 304H, 304N, 304LN 316, 316L, 316H, 316Ti, 316N, 316LN, 310, 317, 317L, 321, 321H, 347, 347H;UNS S 31260, 31500, 31803, 32205, 32304, 32750, 32760;TP- 405, 410;A179；A192；T1a；Gr.A-1, Gr.C；T5, T9, T11, T12, T22, T91；Gr.1, Gr. 3, Gr.6；P5, P9, P11, P12, P91；Gr.C2；St35.8, St45.8, 15Mo3, 10CrMo9 10；P195GH, P235GH, 16Mo3, 10CrMo5-5, 13CrMo4-5；09CrsuSb (ND Tube)

Standard:ASTM, ASME, DIN EN, JIS ( JAPAN ), NF ( AFNOR );ASTM A179，ASTM A192，ASTM A209，ASTM A210，ASTM A213，ASTM A334，ASTM A335，ASTM A556，DIN 17175，EN 10216，GB 150.2-2011;

Applications :LP / HP Heaters Fertilizer Power Plant Petrochemical & Refinery Airfin Cooler Oil & Gas Sectors

Send Email Inquiry
Introduction Specification Production process Packaging Inquiry

Introduction

Pipe Type:Carbon Steel Heat Exchanger Tube,Heat Exchanger Alloy Steel Tube ,Stainless Steel Heat Exchanger Seamless Tube

Outside Diameter:6.00 mm to 101.40 mm

Wall Thickness:0.89 mm to 6.00 mm

Length:Up to 30mtr long

Grades:TP-304, 304L, 304H, 304N, 304LN 316, 316L, 316H, 316Ti, 316N, 316LN, 310, 317, 317L, 321, 321H, 347, 347H;UNS S 31260, 31500, 31803, 32205, 32304, 32750, 32760;TP- 405, 410;A179；A192；T1a；Gr.A-1, Gr.C；T5, T9, T11, T12, T22, T91；Gr.1, Gr. 3, Gr.6；P5, P9, P11, P12, P91；Gr.C2；St35.8, St45.8, 15Mo3, 10CrMo9 10；P195GH, P235GH, 16Mo3, 10CrMo5-5, 13CrMo4-5；09CrsuSb (ND Tube)

Standard:ASTM, ASME, DIN EN, JIS ( JAPAN ), NF ( AFNOR );ASTM A179，ASTM A192，ASTM A209，ASTM A210，ASTM A213，ASTM A334，ASTM A335，ASTM A556，DIN 17175，EN 10216，GB 150.2-2011;

Applications :LP / HP Heaters Fertilizer Power Plant Petrochemical & Refinery Airfin Cooler Oil & Gas Sectors



Specification

Chemical Composition for ASTM A213 Seamless Steel Tube:
Steel Grade
C Mn P S Si Cr Mo V
ASTM A213 T5 Max: 0.15 0.30 - 0.60 Max: 0.025 Max: 0.025 Max: 0.50 4.00 - 6.00 0.45 - 0.65  --
ASTM A213 T9 Max: 0.15 0.30 - 0.60 Max: 0.025 Max: 0.025 0.25 - 1.00 8.00 - 10.00 0.90 - 1.10 --
ASTM A213 T11 0.05 - 0.15 0.30 - 0.60 Max: 0.025 Max: 0.025 0.50 - 1.00 1.00 - 1.50 0.44 -0.65 --
ASTM A213 T12 0.05 - 0.15 0.30 - 0.61 Max: 0.025 Max: 0.025 Max: 0.50 0.80 - 1.25 0.44 - 0.65 --
ASTM A213 T22 0.05 - 0.15 0.30 - 0.60 Max: 0.025 Max: 0.025 Max: 0.50 1.90 - 2.60 0.87 - 1.13 --
ASTM A213 T91 0.08 - 0.12 0.30 - 0.60 Max: 0.020 Max: 0.010 0.20 - 0.50 8.00 - 9.50 0.85 - 1.05 0.18 - 0.25
Cb: 0.06 - 0.1 N: 0.030 - 0.070 Ni: Max: 0.40 Al: Max0.04 Ti: Max: 0.01 Zr: Max 0.01

Mechanical Property for ASTM A213 Seamless Steel Tube:



Steel Grade Tensile Strength, Mpa Yield Strength, Mpa Elongation, %
ASTM A213 T5 Min: 415 Min: 205 Min: 30
ASTM A213 T9 Min: 415 Min: 205 Min: 30
ASTM A213 T11 Min: 415 Min: 205 Min: 30
ASTM A213 T12 Min: 415 Min: 205 Min: 30
ASTM A213 T22 Min: 415 Min: 205 Min: 30
ASTM A213 T91 Min: 415 Min: 415 Min: 20





Production process

Packaging

If you have any inquiries and questions, please contact CONTINENTAL STEEL CO.,LTD. at any time. Thanks in advance. Welcome!
