What Is ASTM A36 Hollow Section?

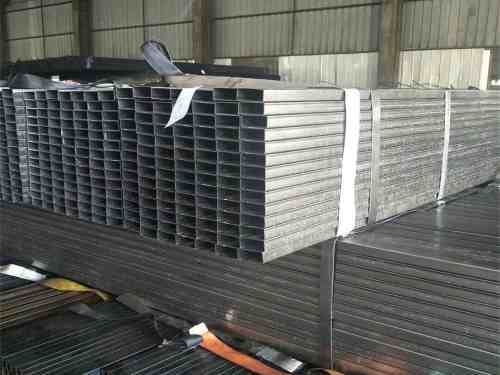

ASTM A36 hollow sections are structural steel tubes manufactured from ASTM A36 carbon structural steel, typically produced in square hollow sections (SHS) and rectangular hollow sections (RHS).
These hollow structural sections are widely used in construction frameworks, mechanical fabrication, infrastructure engineering, and structural support systems due to their good strength, weldability, and cost efficiency.
ASTM A36 hollow sections can be manufactured using either welded or seamless processes, though welded hollow sections are more common in structural applications due to their lower cost and wide availability. Seamless types generally have higher manufacturing costs but provide improved structural uniformity.
To ensure traceability and quality assurance, these products are often supplied with an EN 10204 3.1 material certificate.
Advantages of ASTM A36 Hollow Sections
ASTM A36 hollow structural tubes offer several practical advantages in engineering and fabrication.
- Good Strength and Ductility
ASTM A36 steel provides balanced mechanical strength and ductility, allowing hollow sections to withstand significant loads while maintaining structural flexibility and toughness. This makes them reliable under dynamic loads, impact forces, and structural stress conditions.
- Stable Corrosion Resistance
Although A36 is a carbon steel, it demonstrates adequate resistance to atmospheric corrosion when used in normal environments. Additional surface treatments such as galvanizing, painting, or coating can further improve corrosion protection and extend service life.
- Excellent Weldability and Fabrication Performance
ASTM A36 steel has a low carbon content, which enhances its weldability and machinability. As a result, A36 hollow sections are easy to process through:
welding
cutting
drilling
forming
This significantly improves manufacturing efficiency in structural projects.
Chemical Composition of ASTM A36 Hollow Sections
ASTM A36 steel contains relatively low carbon content, which improves its ductility and weldability.
|
Element
|
Content (%)
|
|
Carbon (C)
|
≤ 0.26
|
|
Manganese (Mn)
|
0.60 – 1.20
|
|
Phosphorus (P)
|
≤ 0.040
|
|
Sulfur (S)
|
≤ 0.050
|
|
Silicon (Si)
|
≤ 0.40
|
These elements provide the steel with stable mechanical properties and good forming performance.
Mechanical Properties of ASTM A36 Hollow Sections
ASTM A36 hollow structural tubes provide reliable mechanical performance suitable for structural applications.
|
Property
|
Value
|
|
Yield Strength
|
≥ 250 MPa (36 ksi)
|
|
Tensile Strength
|
400 – 550 MPa
|
|
Elongation
|
≥ 20%
|
|
Density
|
7.85 g/cm³
|
These mechanical characteristics allow A36 hollow sections to perform well in load-bearing structures and welded assemblies.
Standard Sizes of ASTM A36 Hollow Sections
ASTM A36 hollow sections are available in a wide range of dimensions to meet different structural requirements.
|
Shape
|
Size Range
|
Wall Thickness
|
|
Square Tube (SHS)
|
20 × 20 mm – 500 × 500 mm
|
1.2 – 25 mm
|
|
Rectangular Tube (RHS)
|
30 × 20 mm – 600 × 400 mm
|
1.2 – 25 mm
|
|
Length
|
6 m / 12 m or customized
|
—
|
Custom sizes and thicknesses can also be produced depending on project specifications.
Applications of ASTM A36 Hollow Sections
ASTM A36 hollow sections are widely used in many structural and industrial applications, including:
building structures and steel frames
bridges and infrastructure projects
machinery manufacturing
support columns and structural supports
fabrication and steel construction projects
Their combination of strength, weldability, and affordability makes them one of the most commonly used structural steel tubes.
Conclusion
ASTM A36 hollow sections are versatile structural steel products known for their good mechanical strength, excellent weldability, and economical cost. Available in square and rectangular profiles, they are widely applied in construction, infrastructure, and fabrication industries.
Due to their structural efficiency and broad applicability, ASTM A36 hollow sections remain a practical and reliable choice for modern steel structure projects.
FAQs
- What is ASTM A36 hollow section?
ASTM A36 hollow section is a square or rectangular structural steel tube made from ASTM A36 carbon steel, commonly used in construction and fabrication.
- Is ASTM A36 hollow section welded or seamless?
It can be welded or seamless, but welded hollow sections are more commonly used due to lower cost.
- What sizes are available for ASTM A36 hollow sections?
Common sizes range from 20×20 mm to 500×500 mm for square tubes and 30×20 mm to 600×400 mm for rectangular tubes.
- What is the yield strength of ASTM A36 steel?
ASTM A36 steel has a minimum yield strength of 250 MPa (36 ksi).
- What are ASTM A36 hollow sections used for?
They are widely used in building structures, steel frameworks, machinery fabrication, and infrastructure projects.
- Do ASTM A36 hollow sections require corrosion protection?
Yes. They are often galvanized or coated to improve corrosion resistance and extend service life.
